NACA Ducts...
NACA Ducts
NACA ducts are useful when air needs to be drawn into an area which isn't exposed to the direct air flow the scoop has access to. Quite often you will see NACA ducts along the sides of a car. The NACA duct takes advantage of the Boundary layer, a layer of slow moving air that "clings" to the bodywork of the car, especially where the bodywork flattens, or does not accellerate or decellerate the air flow. Areas like the roof and side body panels are good examples. The longer the roof or body panels, the thicker the layer becomes (a source of drag that grows as the layer thickens too).

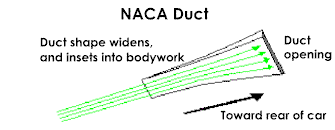

Anyway, the NACA duct scavenges this slower moving area by means of a specially shaped Intake. The Intake shape, shown below, drops in toward the inside of the bodywork, and this draws the slow moving air into the opening at the end of the NACA duct. Vorticies are also generated by the "walls" of the duct shape, aiding in the scavenging. The shape and depth change of the duct are critical for proper operation.

Linked Image

Typical uses for NACA ducts include engine air Intakes and cooling

...

BRS TUNING 2PIECE CARBON FIBER HOOOD (w/SCOOP) FEATURING NACA DUCTS...

Only available at...
https://www.celicahobby.com/catalog/product_info.php?products_id=138
And on sale until the end of APril for only $490
(Silver Sparco hoodpins included with every order)
